Welding Deformation: Causes, Effects, and Control Methods

Welding deformation is a common challenge in manufacturing industries, but by understanding its causes and applying scientific solutions, we can effectively control it. From optimizing process parameters to investing in quality equipment, the right strategies can significantly enhance product quality, lower production costs, and boost market competitiveness.

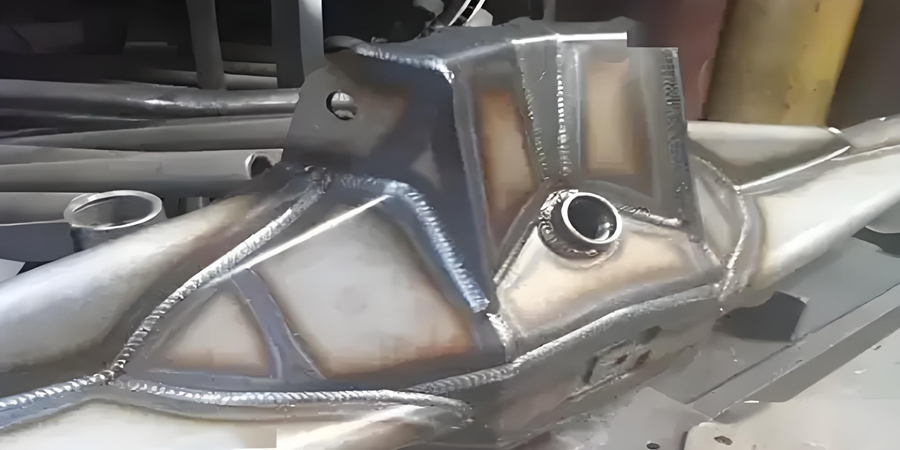

What Is Welding Deformation?

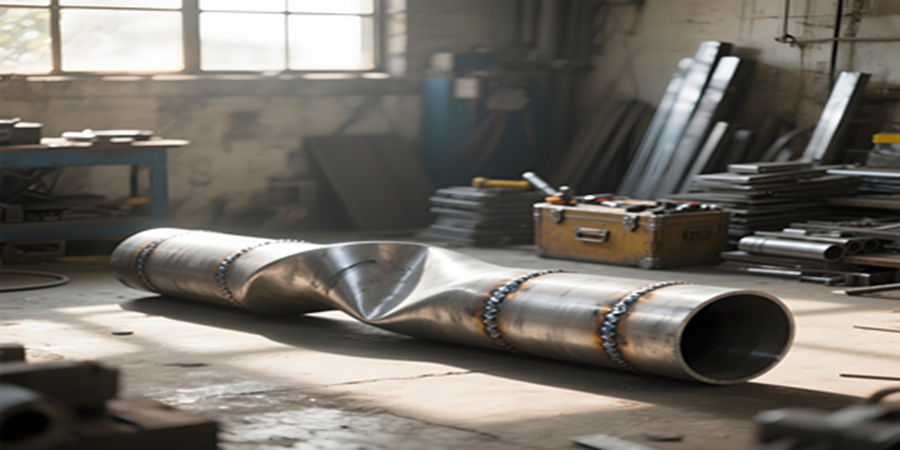

Welding deformation, also known as welding distortion, refers to any change in the shape or size of a workpiece due to uneven heat input and cooling stresses during the welding process. This often manifests as bending, twisting, warping, or shrinkage. For instance, when welding steel plates, the weld area expands under high temperatures and then contracts upon cooling, which can cause the entire plate to bend.

While some degree of distortion is an inevitable consequence of the thermal processes involved in welding, its severity can vary. Minor distortions might only affect appearance, but severe welding deformation can compromise structural integrity, lead to assembly failure, or even require scrapping the entire product, which is especially critical in precision manufacturing for industries like aerospace.

The Primary Causes of Welding Deformation

To effectively control welding deformation, it is crucial to understand its root causes. The primary factors include:

1. Uneven Heat Input: During welding, the heat source rapidly heats the weld zone to its melting point while the surrounding material remains cooler. This temperature gradient causes localized expansion and contraction, creating internal stresses that lead to deformation. For example, MIG welding generally has a higher heat input than TIG welding, often resulting in greater deformation.
2. Material Properties: A material's thermal expansion coefficient and thermal conductivity play a significant role. Carbon steel, with its higher thermal expansion, tends to deform more. Stainless steel has poor thermal conductivity, causing heat to concentrate and also leading to severe deformation. Thin plates are also more prone to warping due to their lower rigidity.
3. Welding Process and Parameters: The chosen welding method and its parameters (current, voltage, speed) directly influence heat input. Higher current or slower welding speed increases heat input and worsens deformation. For instance, using a 135 amp MIG welder on thin plates with improper settings can cause significant distortion.
4. Structural Design and Clamping: Asymmetrical or complex structures can deform more easily due to uneven stress distribution. Likewise, improper clamping—either too restrictive, causing stress concentration, or too loose, failing to counteract deformation—can be a major contributing factor.
5. Cooling Rate: A rapid cooling process, such as in a cold environment, can exacerbate stress accumulation and cause greater deformation. Conversely, controlled slow cooling can help alleviate this issue.

The Impact of Welding Deformation on Manufacturing

The impacts of welding deformation can range from minor aesthetic issues to critical structural failures:

• Reduced Dimensional Accuracy: Deformation can alter a workpiece's dimensions beyond acceptable tolerances, making assembly difficult or impossible. A steel frame with just a 1mm warp might not connect properly with other prefabricated parts.
• Reduced Structural Strength: The internal stresses that cause deformation can also create microcracks in the weld or heat-affected zone, reducing the structure's durability and strength, especially under dynamic loads.
• Increased Production Costs: Correcting deformation requires additional processes like heat treatment or mechanical straightening. In severe cases, products must be scrapped, leading to wasted time, materials, and money.
• Appearance Issues: For products where aesthetics are important, such as architectural frames for WPC board installation, visible warping or uneven surfaces can negatively impact the final look.

Effective Strategies for Controlling Welding Deformation

While completely eliminating welding deformation is challenging, these proven strategies can significantly mitigate its effects.

1. Optimize the Welding Process

Select a welding method with low heat input suitable for the material, like TIG welding for thin plates. Adjust welding parameters by reducing current and voltage while increasing travel speed to minimize total heat input. For example, when using a 135 amp MIG welder, try a lower setting like 110 amps with a faster speed. Using multi-pass welding for thicker sections also helps dissipate heat more effectively.

2. Improve Structural Design and Clamping

Whenever possible, design symmetrical structures to balance welding stresses. For instance, welding both sides of a plate simultaneously can help offset deformation. Use appropriate clamps to secure the workpiece firmly but without over-constraining it, allowing for controlled stress release. It's also wise to anticipate shrinkage and build a deformation allowance into the design.

3. Utilize Preheating and Post-Weld Treatment

Preheating the workpiece, especially for thick plates or high-strength steels, reduces the temperature gradient and minimizes deformation. After welding, controlled cooling (e.g., using a thermal blanket) can reduce residual stress. Post-weld heat treatment, such as annealing or normalizing, can further eliminate internal stress and restore the workpiece's shape.

Real-World Case Studies

• Case 1: Building Frame Welding: A construction company experienced a 2mm warp on frames by using high-current manual arc welding on one side. By switching to a lower current, preheating to 150°C, and alternating welds on both sides, they reduced warpage significantly and improved assembly accuracy.
• Case 2: Thin Plate Manufacturing: A factory producing 1mm stainless steel plates with a 135 amp MIG welder faced a 30% scrap rate due to severe distortion. By switching to TIG welding at 90 amps and using anti-deformation fixtures, they reduced deformation by 80% and cut the scrap rate to 5%.

How to Select Suitable Welding Equipment

Choosing high-quality equipment is fundamental to control welding deformation. Consider the following:

• Power Match: For thin plate welding, a 100-150 amp TIG or MIG welder is often sufficient.
• Stability: Select equipment with stable current output to ensure consistent heat input.
• Portability: Portable welders, like many 135 amp MIG welder models, offer flexibility for on-site projects.
• Brand and Support: Choose a reputable brand with good after-sales support for maintenance and parts.

Conclusion

Welding deformation is a persistent challenge, but it is not insurmountable. By thoroughly understanding the causes of welding deformation and systematically applying control strategies—from process optimization and smart design to preheating and post-treatment—manufacturers can keep distortion within acceptable limits. Investing in quality equipment and professional training is a key long-term strategy for any company looking to master the art of welding and produce high-quality, dimensionally accurate products.
