Drill Smoking/Jamming/Leaking Electricity? A Complete Guide to High-Risk Operations and Emergency Solutions

From Immediate Response to Root Cause Prevention – Safeguarding Your Tools and Safety

Introduction: Shocking Statistics – Tool Accidents Are Closer Than You Think

According to the U.S. Occupational Safety and Health Administration (OSHA), in 2023, global accidents caused by improper use of power tools included:

38% involved drill smoking or fire

27% resulted in physical injuries due to bit jamming

19% caused electric shocks or short circuits
This is not fear-mongering but a real risk every user may face. This article provides a complete solution, from on-site first aid to long-term prevention.

I. Drill Smoking: Emergency Fire Control and Fault Tracing

1. Four-Step On-Site Rescue

1. Cut Power Immediately: Unplug or remove the battery (avoid touching the smoking area).

2. Isolate the Tool: Move it to a ventilated, open area away from flammable materials.

3. Cool Down: Use a dry powder fire extinguisher (never water!) or let it cool naturally.

4. Initial Inspection:

Check if vents are blocked.

Identify odors (burnt plastic → motor overheating; acidic smell → battery leakage).

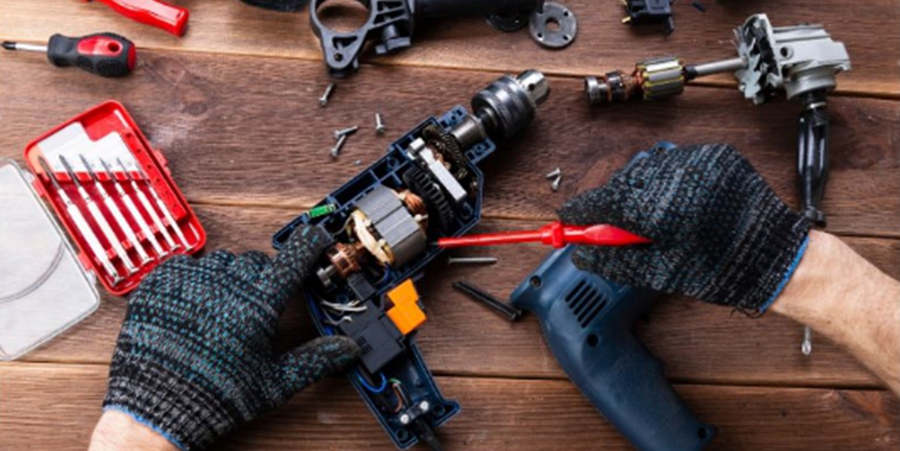

2. Three Root Causes of Smoking and Repair Solutions

① Motor Overload

Symptoms: Smoking after prolonged heavy use, accompanied by a burnt smell.

Repair Steps:
✅ Replace carbon brushes (replace if worn beyond 1/3).
✅ Clean internal carbon buildup (use precision electrical cleaner).
✅ Install a cooling fan (for high-power industrial drills).

② Lithium Battery Thermal Runaway

Warning Signs: Battery swelling, leakage, or sudden temperature rise.

Emergency Handling:
❌ Do not charge/discharge.
✅ Place the battery in a fireproof sandbox for isolation.
✅ Contact professional recycling agencies (lithium batteries contain hazardous materials).

③ Circuit Short Circuit

Inspection Focus:

Damaged power cords (especially near the plug).

Aged internal wire insulation.

DIY Repair Warnings:
❌ Non-professionals should never disassemble circuit boards.
✅ Send to authorized service centers (keep warranty proof).

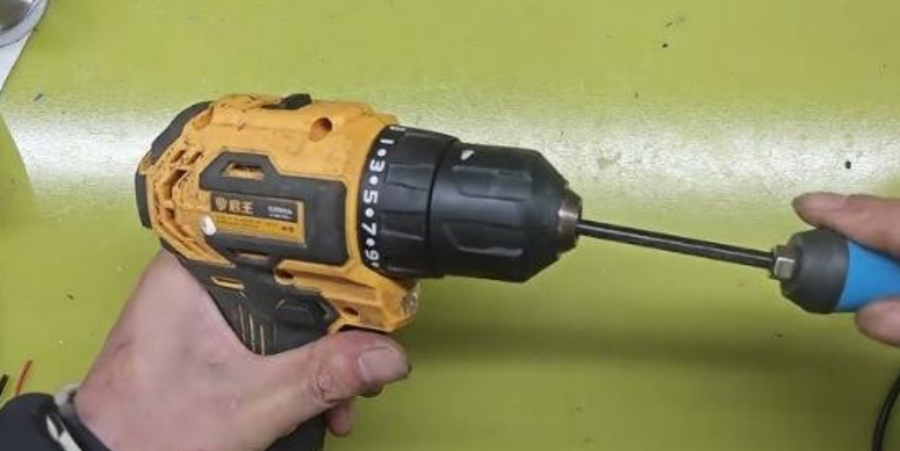

II. Bit Jamming: How to Safely Remove the Bit and Avoid Secondary Injuries

1. Deadly Mistakes and Correct Operations During Jamming

What Not to Do:
❌ Forcefully reverse rotation (may damage the gearbox).
❌ Hammer the bit (may cause debris to fly).

Five-Step Safe Removal:

1. Turn off power and wear cut-resistant gloves.

2. Use a pipe wrench to secure the bit base (prevent rotation).

3. Apply penetrating lubricant (e.g., WD-40 or diesel).

4. Gently rock the drill body counterclockwise (not the bit!).

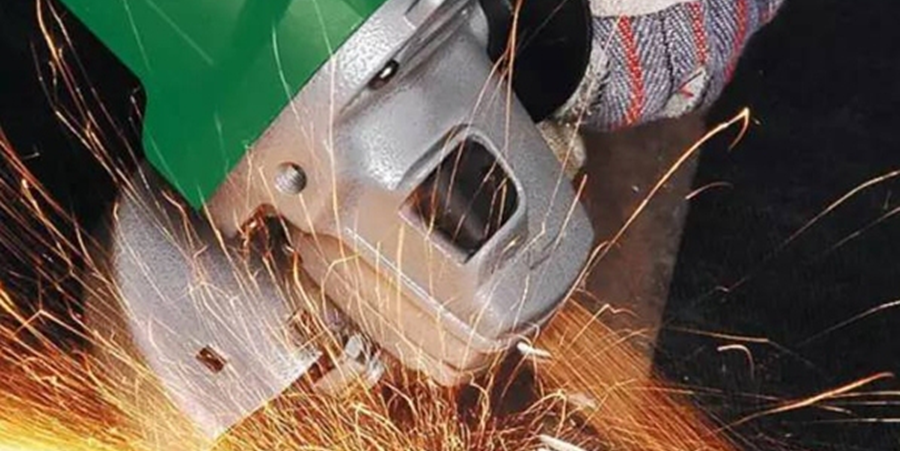

5. If still stuck, cut the bit (requires an angle grinder + face shield).

2. Six Causes of Jamming and Preventive Measures

III. Electric Leakage: From Emergency Response to Systematic Troubleshooting

1. Life-Saving Rules for Electric Leakage

Electric Shock Rescue:

1. Hop away on one foot (avoid step voltage).

2. Use a dry wooden stick to move the wire.

3. Call emergency services immediately (internal burns may occur even without visible injuries).

Tool Handling:
✅ After power-off, use a multimeter to check casing voltage (>30V indicates risk).
✅ Remove the battery and check for water damage.

2. In-Depth Troubleshooting of Four Leakage Risks

① Damaged Power Cord

High-Risk Areas: Plug connections, frequently bent sections.

Repair Solution:
✅ Use heat shrink tubing + insulating tape for double protection.
✅ Replace with silicone-coated cords (5x more flexible).

② Motor Winding Leakage

Testing Tool: Megohmmeter (insulation resistance <2MΩ indicates failure).

Non-Professional Advice: Replace the motor directly (repair costs often exceed 50% of a new unit).

③ Moisture Infiltration

Protection Level: Choose drills with IP54 or higher waterproof rating (e.g., Bosch GBH 18V-26).

Emergency Rescue: Disassemble and clean the circuit board with anhydrous alcohol; dry for 24 hours.

④ Grounding Failure

Key Checks:

Ensure the ground pin of the three-prong plug is secure.

Grounding resistance <4Ω (use a ground resistance tester).

IV. Long-Term Prevention: A One-Sheet Drill Health Management Plan

Drill Maintenance Schedule

Low-Cost Maintenance Tools

1.Contact Cleaner: DeoxIT D5 (cleans battery contacts, $15/bottle).

2. Anti-Rust Spray: WD-40 Specialist Long-Term Corrosion Inhibitor ($10/can).

3. DIY Insulation Tester: Klein Tools RT105 (home-use multimeter, $50).

V. Case Studies: Lessons from Bloody Accidents

Case 1: A worker suffered nerve damage in his right hand due to a damaged power cord.
→ Lesson: Monthly cord inspections are more important than insurance.

Case 2: A DIY user forcefully removed a jammed bit, causing it to shatter and pierce an eye.
→ Lesson: Always have pipe wrenches + safety goggles (cost <$20).

Case 3: A warehouse manager ignored a swollen battery, causing a $500k fire.
→ Lesson: Implement a battery retirement policy (retire after ≥500 charge cycles).
