From the brazing techniques of the pyramids to the cryogenic welding of SpaceX's Starship, welding technology has always been the "industrial fingerprint" of human civilization's progress. In 2025, the global welding market is projected to exceed $480 billion (Source: Market Research Future), and its technological depth is reshaping the manufacturing landscape. This article will analyze the evolution of the welding process from four dimensions: core principles, technological breakthroughs, application scenarios, and future trends.

Understanding the Welding Process: The Science of Atomic Fusion

The essence of welding is to form a metallurgical bond between base material atoms through heat, pressure, or a combination of both. This welding process involves complex physicochemical changes:

Energy Input: Arc, laser, or ultrasonic energy causes localized melting or plastic deformation of the material.
Metallurgical Reaction: The diffusion of alloying elements and redox reactions within the molten pool determine the final weld performance.
Cooling Crystallization: Rapid solidification forms columnar or equiaxed crystal structures, impacting the strength of the welded joint.

Scientific Breakthrough: A team from Tsinghua University used a synchrotron radiation source to observe molten pool flow in real-time, discovering that magnetic field regulation can reduce porosity by 60%. The results were published in the journal Nature.

The Spectrum of Modern Welding Technologies

The field encompasses a wide range of techniques, each suited for different materials and applications. Here are the main categories of advanced welding technology.

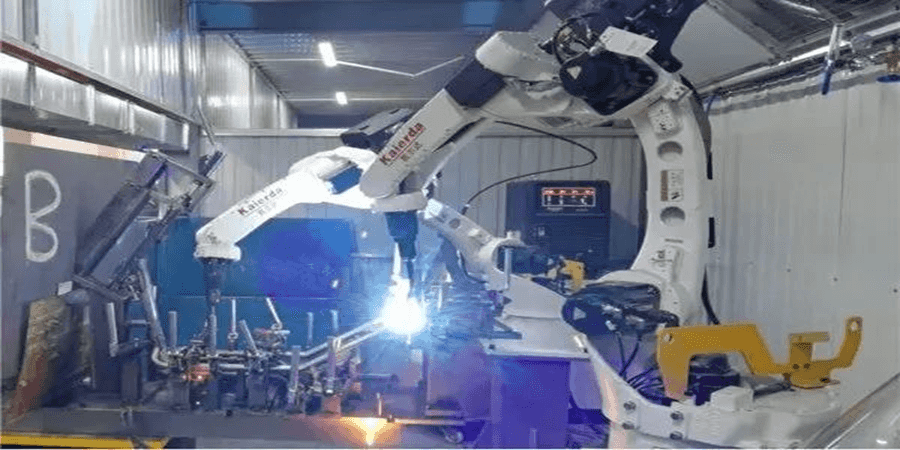

1. Arc Welding: The Intelligent Upgrade of a Classic

Double-wire MIG welding, used by German company Cloos on Volkswagen's MEB platform, achieves speeds of 30mm/s, boosting efficiency by 50%. Variable polarity TIG welding is used by American aerospace companies for titanium alloys, reducing heat input by 40% and increasing weld toughness by 35%. Furthermore, digital power supplies like the Lincoln Electric Power Wave® R450 use AI algorithms to automatically compensate for workpiece thickness deviations, achieving a 99.2% yield rate.

Data: In 2025, the global arc welding equipment market will still account for over 55%, but the growth rate for intelligent products is 19% (Grand View Research).

2. High-Energy Beam Welding: The "Scalpel" of Precision Manufacturing

This category of advanced welding technology includes:

Fiber Laser Welding: Used by Dazu Laser for CATL's battery electrode welding, with a spot diameter of 0.05mm and speeds up to 10m/min.
Electron Beam Welding: COMAC uses vacuum electron beam technology for the C919's wing main beam, achieving a weld depth-to-width ratio of 25:1 and doubling fatigue life.
Ultrasonic Welding: Panasonic uses this for 5G chip heat sinks, with amplitude control accurate to ±0.1μm to avoid heat damage.

Application Case: The Airbus A380's titanium fuselage frame uses laser welding to reduce weight by 15%, equivalent to carrying 120 more passengers.

3. Solid-Phase Welding: Innovation Beyond the Melting Point

Solid-phase welding joins materials without melting them, offering unique advantages.

Friction Stir Welding (FSW): CRRC applies this to high-speed aluminum alloy train bodies, achieving weld strength of 95% of the base metal and reducing deformation by 80%.
Diffusion Welding: A nano-layered composite diffusion welding technology developed by the Chinese Academy of Sciences achieves a copper-steel interface bond strength of 450MPa.
Explosive Welding: Used in Russia for nuclear reactor double-layer containers, it provides an interfacial shear strength of 300MPa and increases corrosion resistance fivefold.

Technology Frontier: Magnetic pulse welding technology from MIT can complete dissimilar metal connections at the microsecond level and is used in electric vehicle motor windings.

Industrial Impact: How Welding Applications Revolutionize Manufacturing

The right welding process is critical across major industries, defining product performance and manufacturing efficiency. These are some key welding applications.

1. Automotive Industry: The Craftsmanship Competition of the New Energy Era

Tesla's 4680 battery uses laser welding for its tabs, with a single cell welding time of 0.1 seconds, increasing production capacity fourfold. The NIO ET7 uses 2100MPa laser welding technology to achieve a torsional rigidity of 38,000N·m/deg. BYD's robotic laser welding system for motor stators reduces winding resistance by 15%, increasing vehicle range by 8%.

Data: In 2025, the global automotive welding equipment market will reach $85 billion, with new energy vehicle applications accounting for over 60%.

2. Aerospace: Technological Barriers in Cutting-Edge Manufacturing

Key aerospace welding applications include SpaceX's Raptor engine combustion chamber, which uses supercritical CO₂ laser welding to withstand 330bar pressure and 3300°C. The Boeing 787 uses induction heating curing welding for carbon fiber laminates, increasing connection strength by 40%. The Chinese Space Station module uses vacuum brazing for zero-deformation connections of 2m aluminum alloy segments.

Innovative Breakthrough: NASA's "Space Welding Glovebox" enables spacecraft maintenance welding in microgravity with an error of less than 0.02mm.

3. Energy Infrastructure: Process Innovation for a Low-Carbon Future

The Hualong One nuclear reactor uses narrow-gap submerged arc welding, increasing efficiency threefold while meeting ASME standards. Siemens Gamesa uses double-wire submerged arc welding for offshore wind turbine towers, shortening the cycle for a 14MW turbine to 96 hours. Sinopec's 9Ni steel welding process achieves zero-leakage seals for liquid hydrogen storage tanks at -196°C.

The Future of Welding: Key Technological Evolutions

The evolution of the welding process is accelerating, driven by intelligence, miniaturization, and the need to operate in extreme environments.

1. Intelligence: The Deep Integration of AI and Welding

Digital twin technology, like the virtual welding system from Air Liquide, can optimize process parameters in a virtual environment, reducing trial-and-error costs by 70%. SANY Heavy Industry uses 5G remote welding to operate equipment in Africa with a latency of <10ms. AI models can now predict weld cracks in real-time with 98.7% accuracy.

2. Miniaturization: Breakthroughs in Nano-Welding

Stanford University's ALD welding technology can create chip interconnections at the single atomic layer scale. The University of Tokyo uses femtosecond lasers for seamless carbon nanotube connections. MIT has even developed DNA-assisted welding for self-assembling nanodevices at room temperature.

3. Extreme Environment Welding: From the Deep Sea to Outer Space

Underwater dry welding chambers are used on combustible ice mining platforms to perform maintenance at 300bar pressure. ESA's Robonaut 3 is equipped with a micro-arc welder for autonomous repairs on the International Space Station. Researchers are even simulating Earth's core by welding iron-nickel alloys at 50GPa.

Navigating Challenges and Opportunities in the Welding Industry

The industry faces a global skilled talent gap of 2.3 million (AWS data), which VR training simulators are helping to address by shortening training cycles by 40%. High equipment costs are being mitigated by innovative leasing models. To address the lack of standards, the ISO has issued the "Dissimilar Metal Welding Process Assessment Guide".

Conclusion: The Ultimate Mission of the Welding Process

In the era of intelligent manufacturing, the welding process has transcended "connection" to become a core element defining product performance and sustainability. From the atomic-level welding of quantum chips to the modular construction of space stations, advanced welding technology is reshaping the physical boundaries of human civilization. The nations that master it will not only dominate high-end manufacturing but also hold "air supremacy" in strategic industries, rewriting the global industrial landscape for the next decade.
