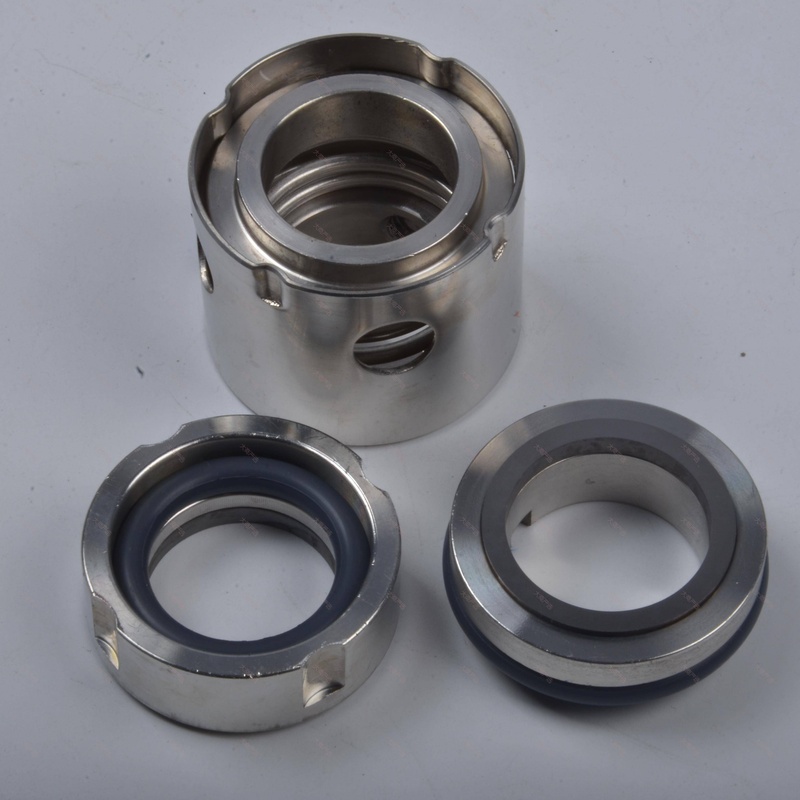

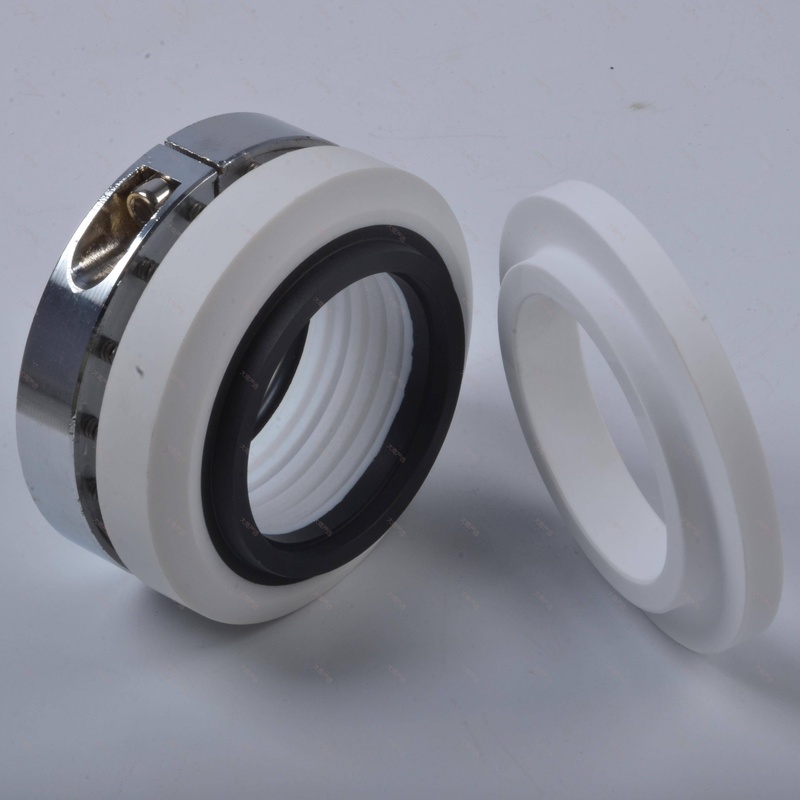

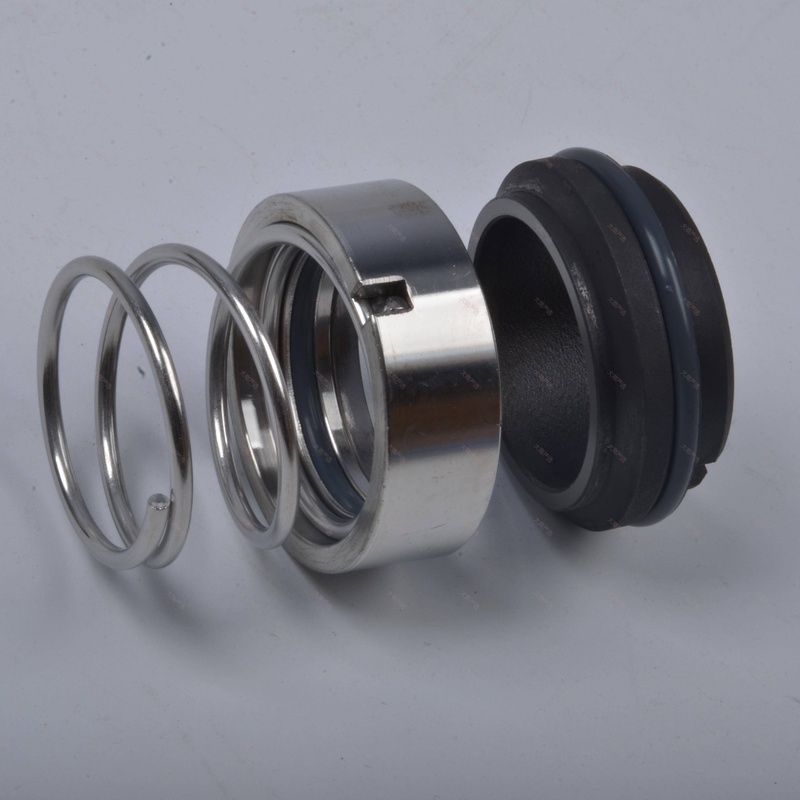

104 Series Multi-Spring Stainless Steel Mechanical Seal Universal Cartridge Seal


$6.80

  • SKU: HT33
  • Availability: 8888
Total $6.80
WhatsApp
If the price of the product is reduced within 30 days, we will notify you via email, SMS and mobile client~
Notify you when the item is below the price
Mobile phone number
Email address
If the goods arrive within 30 days, we will notify you via email, SMS and mobile client~
Mobile phone number
Email address
Origin China
Material Stainless Steel 304 / Stainless Steel 316 / Silicon Carbide / Carbon Graphite / Fluoroelastomer FKM
Product Name 104 Series Multi-Spring Stainless Steel Mechanical Seal Universal Cartridge Seal
Structure / Process Multi-Spring Compensated / Metal Bellows / Cartridge Type / Clip Installation / Single-face / Push-type
Product Features Adjustment-free Installation / Strong Anti-clogging / Universal Interchange / Large Spring Compensation / Stable Torque Transmission / High Temperature Resistant
Type Multi-Spring Mechanical Seal / Universal Seal / Clip-type Seal
Color Stainless Steel Silver-white / Black Graphite (Customizable)
Function Used for shaft end sealing of universal centrifugal pumps / chemical process pumps / boiler feed water pumps / hot water circulation pumps / prevents water/oil/steam medium leakage
Application Scenario Industrial Water Treatment / Boiler Feed Water / HVAC Heat Exchange / Food-grade Fluids / Cosmetics / Paint Transport
Specification Shaft Diameter 20-100mm / Working Pressure ≤2.5MPa / Working Temperature -40℃~220℃ / Linear Velocity ≤25m/s
Brand OEM/ODM (Customizable)
MOQ 100 pieces
Port Qingdao, Rizhao
