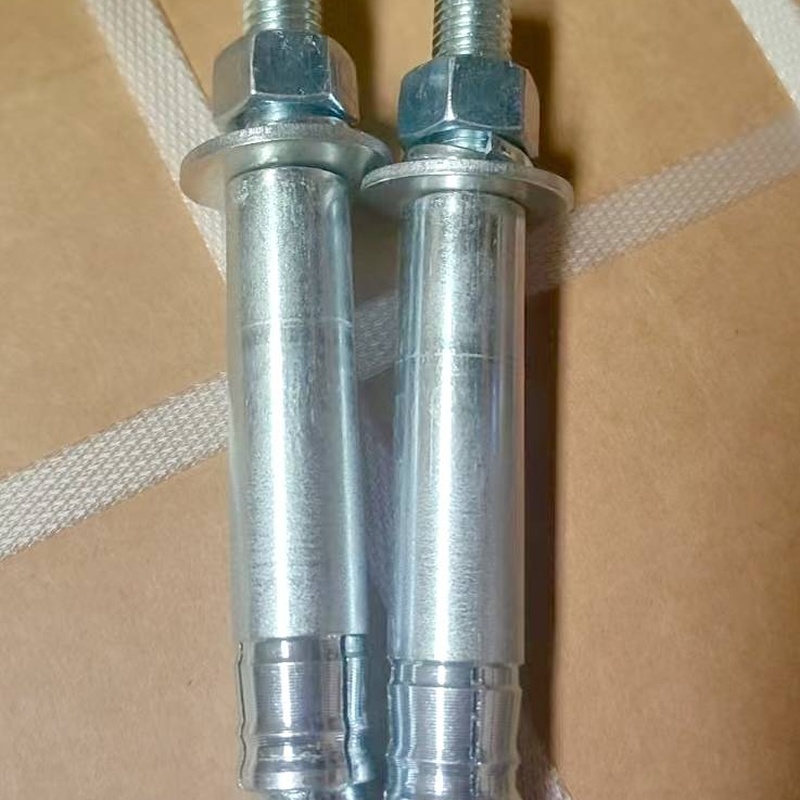

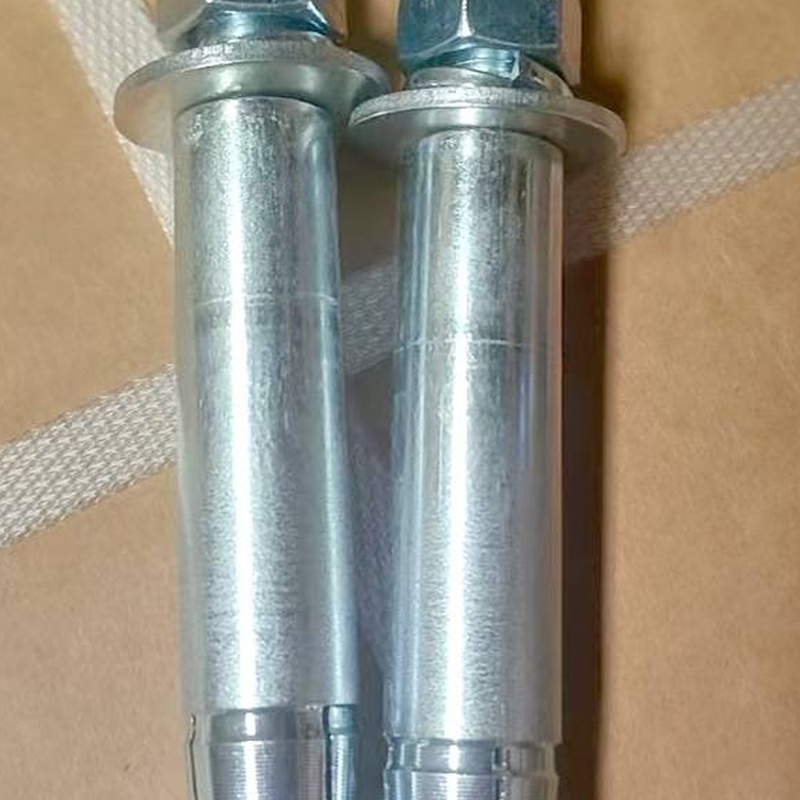

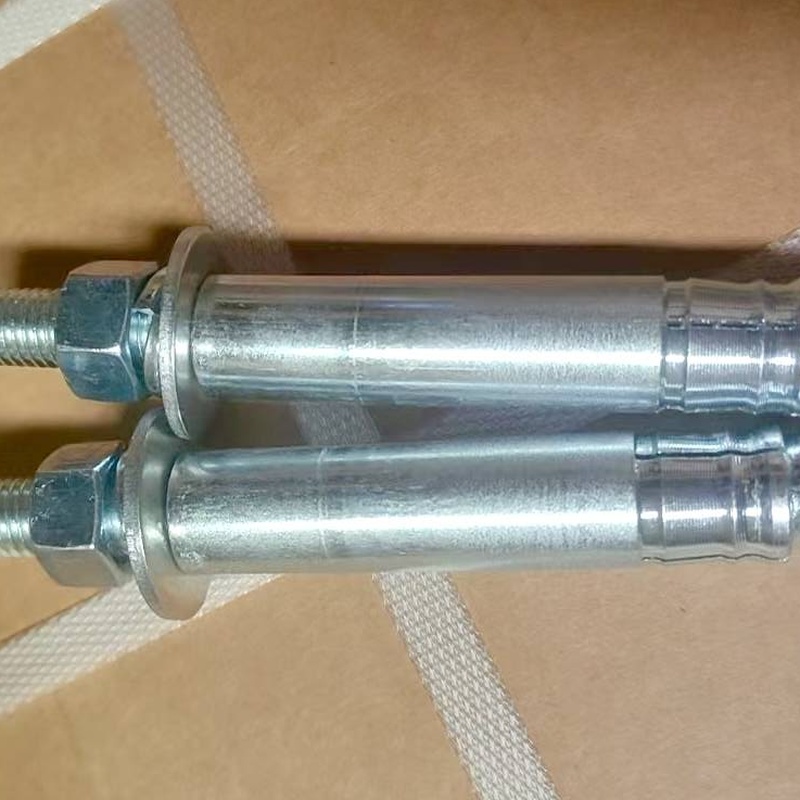

Electro-Galvanized Grade 8.8 Mechanical Wedge Anchor


$1.90

Jiusen Anchors Factory

中国 河北省


  • SKU: JAF04
  • Availability: 9999
Total $1.90
WhatsApp
If the price of the product is reduced within 30 days, we will notify you via email, SMS and mobile client~
Notify you when the item is below the price
Mobile phone number
Email address
If the goods arrive within 30 days, we will notify you via email, SMS and mobile client~
Mobile phone number
Email address
Origin China
Material Grade 8.8 high-strength carbon steel (Tensile strength ≥ 800MPa, yield strength ≥ 640MPa, GB/T 3098.1 GB standard) / Electro-galvanized (Zinc layer thickness 8-15μm, customizable blue-white zinc / yellow zinc / Dacromet / 304 stainless steel)
Product Name Electro-Galvanized Grade 8.8 Mechanical Wedge Anchor
Structure / Process Sleeve-type post-expansion structure / Conical wedge + Three-segment expansion sleeve + Hex head bolt + Matching Grade 8.8 nut and flat washer / Full thread forming
Product Features Grade 8.8 high tensile strength / Electro-galvanized bright appearance / Uniform post-expansion load-bearing / Conical wedge three-segment expansion / High load capacity / Heavy-duty applications
Type Grade 8.8 mechanical anchor / High-strength post-expansion anchor / Heavy-duty load-bearing anchor / Steel structure connection anchor / Large equipment anchoring fastener
Color Electro-galvanized silver-white (Bright mirror-like surface, Grade 8.8 strength marking customizable, customizable blue-white zinc / yellow zinc / Dacromet / 304 stainless steel natural)
Function High-strength load-bearing / Large equipment anchoring / Steel structure connection / Shock and impact resistant / Bridge tunnel load-bearing / Heavy machinery fixation
Application Scenario Large equipment base / Bridge steel structure / Tunnel pipe corridor / Heavy machinery / Industrial plant load-bearing / High load scenarios
Specification M8-M24 diameter / Total length 60-200mm / Drill hole diameter equal to anchor / Minimum anchorage depth 60mm / GB/T 22795 + GB/T 3098.1 GB standard (Customizable non-standard specifications)
Brand OEM/ODM (Customizable)
MOQ 100 pieces
Port Qingdao, Rizhao
