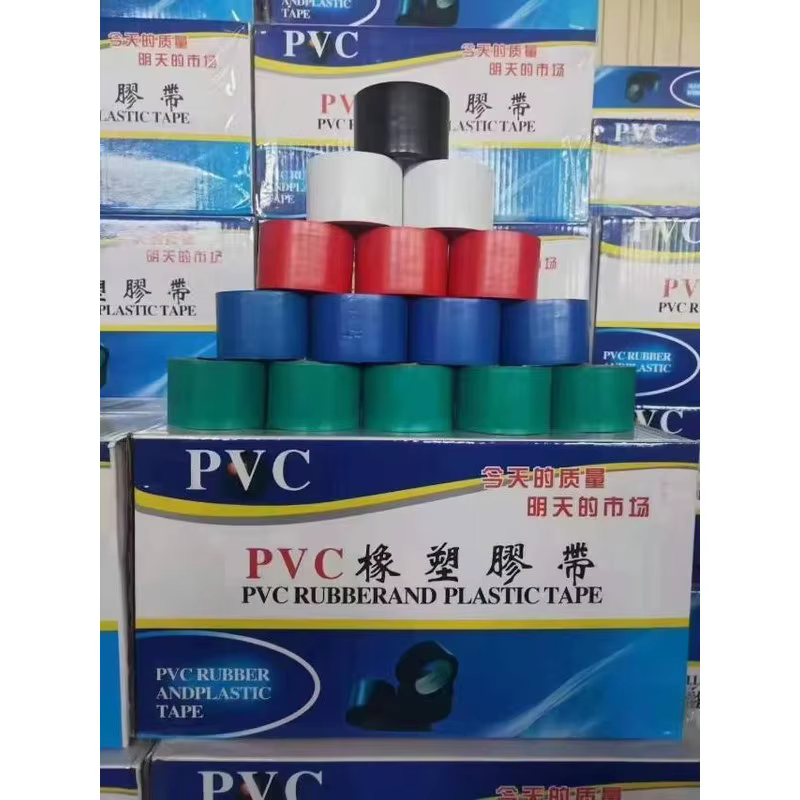

PVC Electrical Insulation Rubber Plastic Tape Multicolor Flame-Retardant Waterproof Tape for Cable Wire Wrapping Identification


$1.69

CHINT Electric

中国 山东省


  • SKU: HLBWG03
  • Availability: 999
Total $1.69
WhatsApp
If the price of the product is reduced within 30 days, we will notify you via email, SMS and mobile client~
Notify you when the item is below the price
Mobile phone number
Email address
If the goods arrive within 30 days, we will notify you via email, SMS and mobile client~
Mobile phone number
Email address
Attribute Classification Details
Origin China
Material Polyvinyl chloride (PVC) film backing + rubber-based pressure-sensitive adhesive
Product Name PVC Electrical Insulation Rubber Plastic Tape (cable wrapping and identification tape)
Structure / Process Single-side rubber-based PSA coated on PVC film, finished in roll form, multiple colors available
Product Features Excellent electrical insulation, soft and conformable, flame-retardant, waterproof, hand-tearable, easy application
Type Electrical insulation / identification / wrapping tape
Color Red / Blue / Green / Black / White / Yellow (multi-color options)
Width Options 10 mm / 15 mm / 18 mm / 19 mm / 25 mm / 30 mm / 50 mm (custom slitting available)
Length Options 5 m / 10 m / 20 m / 25 m per roll
Thickness 0.10 mm / 0.13 mm / 0.15 mm / 0.18 mm (PVC + adhesive layer)
Working Temperature −10 °C to +80 °C
Dielectric Breakdown ≥ 5 kV (per applicable GB/T 13869.1 test conditions)
Fire Performance Flame-retardant PVC formulation, self-extinguishing after flame removal
Elongation ≥ 150 %
Tensile Strength ≥ 20 N/10 mm
Peel Strength ≥ 1.8 N/10 mm (against stainless steel)
Moisture Absorption ≤ 1.5 %
Substrates PVC wire insulation, copper/aluminum conductors, cable jacket marking, phase identification, pipe wrapping protection
Application Scenario Electrical wire insulation, phase color marking, cable jacket repair, temporary pipe binding, warning identification
Shelf Life 24 months (store in dry, cool conditions, away from heat sources)
Selling Unit Roll, 10 or 20 rolls per box
Minimum Order Quantity From 200 rolls (mixed colors and specs acceptable)
Package Type Single-roll shrink wrap + individual box, 100–200 rolls per outer carton
Port Tianjin Port / Qingdao Port
Brand OEM/ODM
