Solar Panel Water Drainage Channel Bracket


$2.80

  • SKU: HCF01
  • Availability: 1
Total $2.80
WhatsApp
If the price of the product is reduced within 30 days, we will notify you via email, SMS and mobile client~
Notify you when the item is below the price
Mobile phone number
Email address
If the goods arrive within 30 days, we will notify you via email, SMS and mobile client~
Mobile phone number
Email address
Origin China
Material Q235 carbon steel / Hot-dip galvanized (Customizable 304 stainless steel / Dacromet / Powder coating)

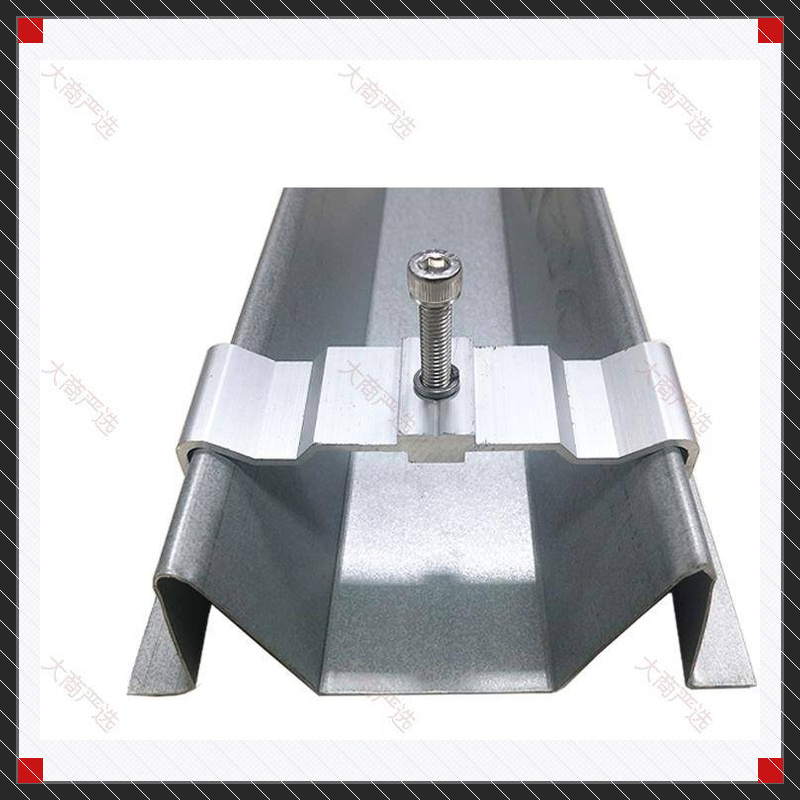

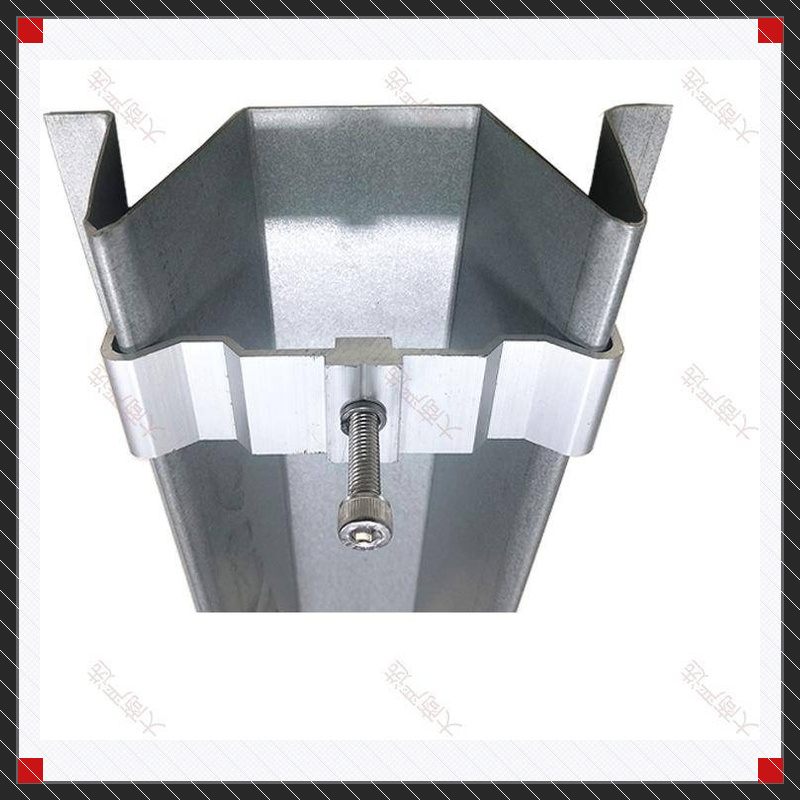

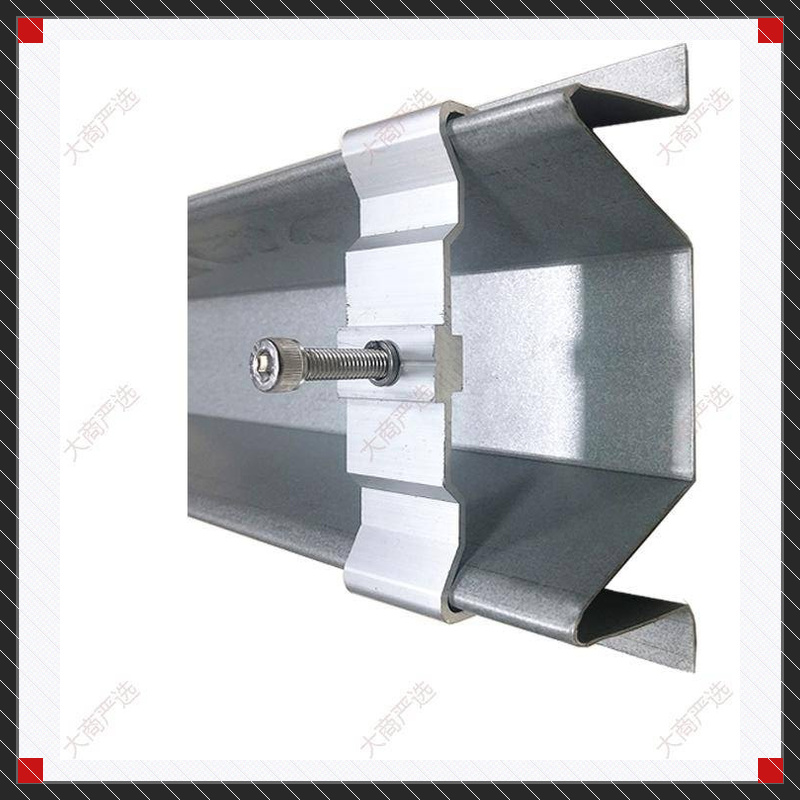

Product Name Solar Panel Water Drainage Channel Bracket
Structure / Process U-shaped water channel body / Both side flanged reinforcement ribs / Pre-drilled bolt holes / Integrated stamping forming
Product Features U-shaped water channel design / Galvanized corrosion resistant / High strength non-deforming / Easy installation / Compatible with various solar panel specifications
Type Solar water channel bracket / U-shaped water channel bracket / Solar drainage channel bracket / Solar panel drainage channel bracket
Color Galvanized silver (Customizable powder-coated white-gray / black / 304 stainless steel natural color)
Function Water drainage / Solar panel bracket bottom fixation / Prevent rainwater accumulation / Wind pressure resistance bearing / Rooftop solar installation
Application Scenario Rooftop distributed solar / Solar carport / Agricultural solar greenhouse / Solar power station construction / Solar water heater bracket

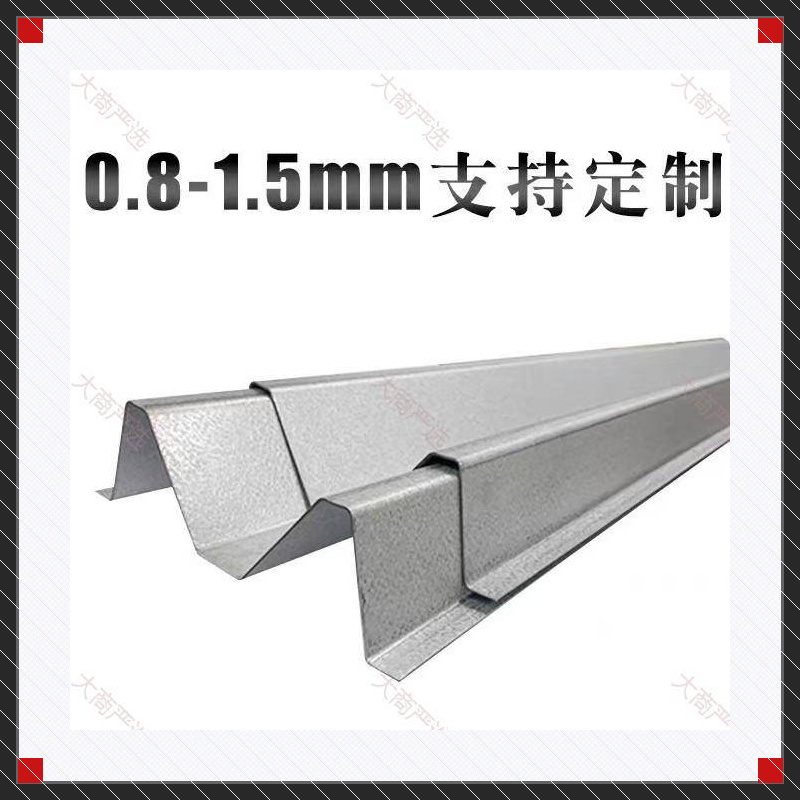

Specification U channel width 50-150mm / Thickness 0.8-1.5mm / Length 200-600mm / Matching M6/M8 stainless steel bolts (Customizable non-standard specifications)
Brand OEM/ODM (Customizable)
MOQ 100 pieces
Port Qingdao, Rizhao
