Taiwei High Voltage Isolation Switch and Cable Rod Kit GW9 Outdoor Isolation Switch Hot Galvanized Cable Rod Tower Anchor Tension Hardware


$40.00

  • SKU: ST05
  • Availability: 999
Total $40.00
WhatsApp
If the price of the product is reduced within 30 days, we will notify you via email, SMS and mobile client~
Notify you when the item is below the price
Mobile phone number
Email address
If the goods arrive within 30 days, we will notify you via email, SMS and mobile client~
Mobile phone number
Email address
Origin China
Material Porcelain insulator + galvanized steel base + silver-plated copper contact (GW9 disconnect switch) / Q235 hot-dip galvanized round steel + welded anchor plate (anchor rod)
Product Name High Voltage Disconnect Switch and Anchor Rod Set

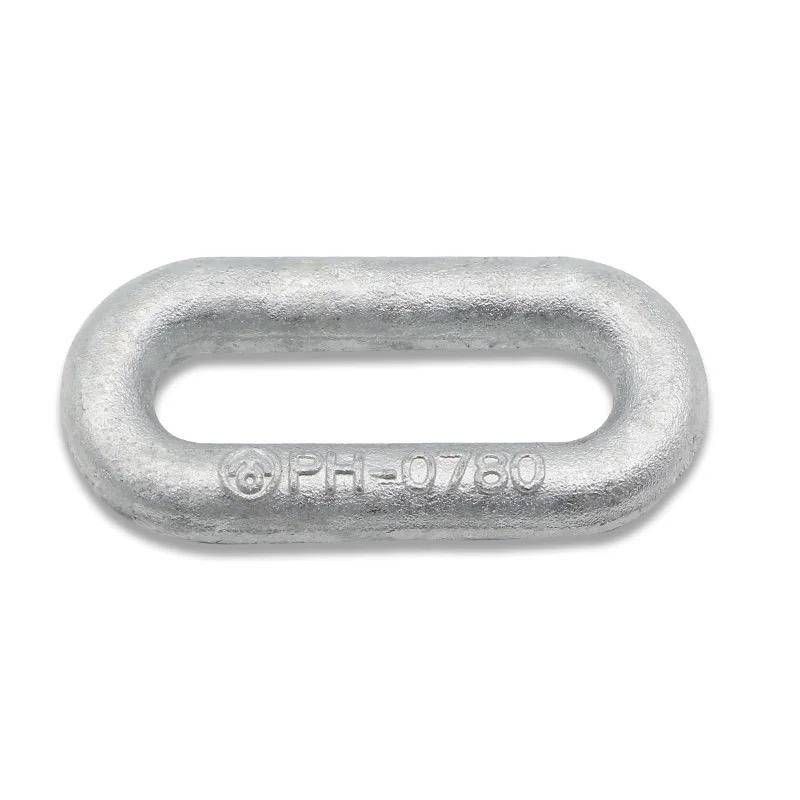

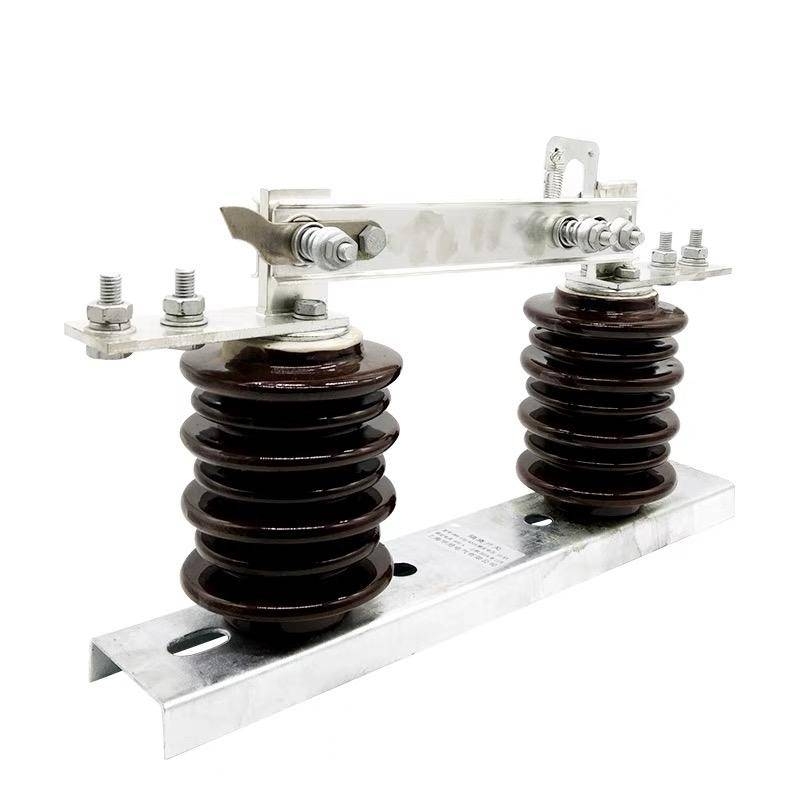

Structure / Process GW9 disconnect switch single-pole rotary knife switch + porcelain insulation pillar + manual operating mechanism; Anchor rod round bar + anchor plate + screw rod + pulling ring + double nut combination
Product Features Disconnect switch reliable breaking, visible fracture, mechanical interlock, hot-dip galvanized anchor rod 30-year anti-corrosion, φ16-φ24 multi-specifications complete

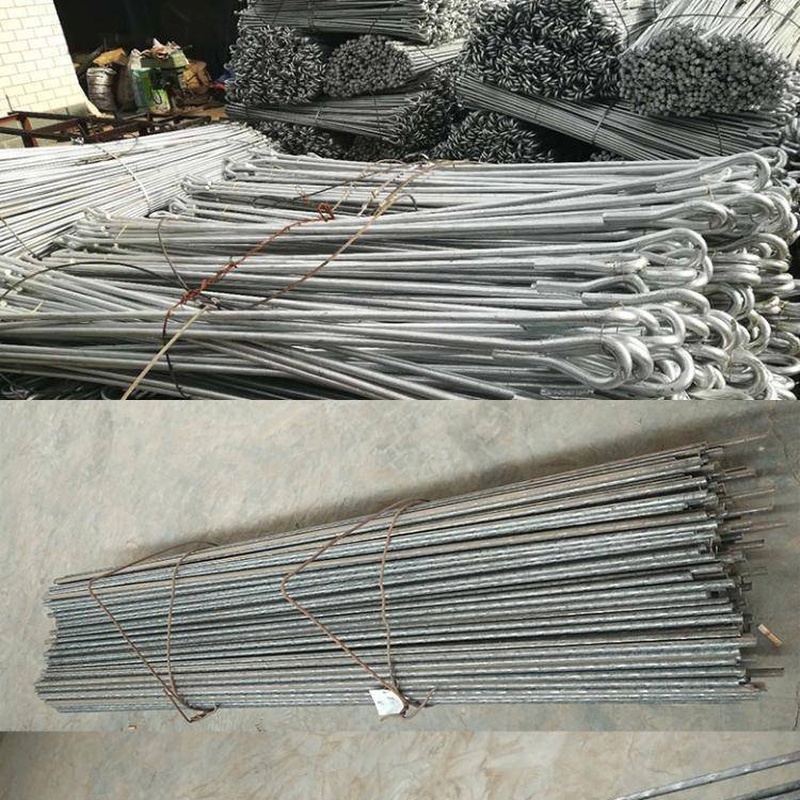

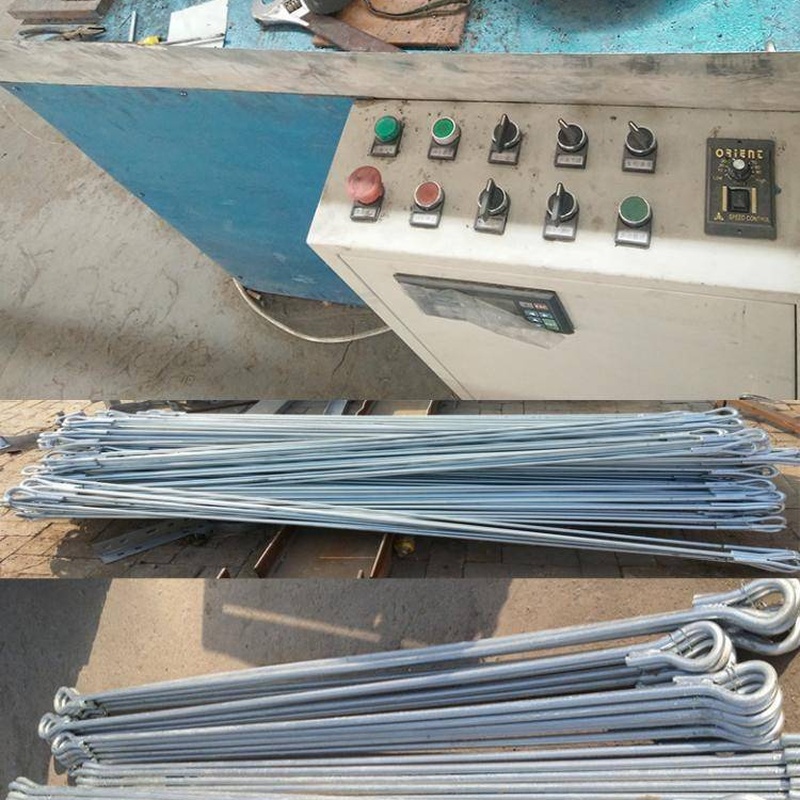

Type GW9-10/11 Outdoor High Voltage Disconnect Switch / Anchor Rod (φ16/φ20/φ22/φ24, hot-dip galvanized, 2000-3000 mm)
Color Porcelain white (insulator) / Galvanized silver (steel base / anchor rod) / Silver-plated white (contact)
Function High voltage line switching on/off / maintenance isolation / tower pulling earth anchor / pulling balance tension / overhead line terminal anchoring
Application Scenario 10 kV/35 kV outdoor overhead lines, substation maintenance isolation, railway electrification catenary switch, power plant auxiliary power system, wind-solar photovoltaic booster station
Specification GW9-10 rated 10 kV 630 A / GW9-11 rated 11 kV 630 A / Anchor rod φ16-φ24 length 2000-3000 mm hot-dip galvanized
Brand OEM / ODM (Customizable)
Minimum Order Quantity 50 pieces
Port Qingdao, Rizhao
