Zhongcai Group Xianglong Plastic PVC Electrical Wire Conduit and Cable Tray Kit Flame retardant Cold bending Wire Conduit PP Corrugated Pipe Exposed Cable Tray


$8.71

  • SKU: ZC05
  • Availability: 999
Total $8.71
WhatsApp
If the price of the product is reduced within 30 days, we will notify you via email, SMS and mobile client~
Notify you when the item is below the price
Mobile phone number
Email address
If the goods arrive within 30 days, we will notify you via email, SMS and mobile client~
Mobile phone number
Email address
Origin China
Material Flame-retardant modified unplasticized polyvinyl chloride (PVC-U) with oxygen index of 32 or above; corrugated conduit made of flame-retardant polypropylene (PP) or PE engineering compound
Product Name PVC Electrical Conduit (red/orange/white/grey) plus PP Flame-Retardant Corrugated Conduit plus PVC Flat and Convex Surface Trunking

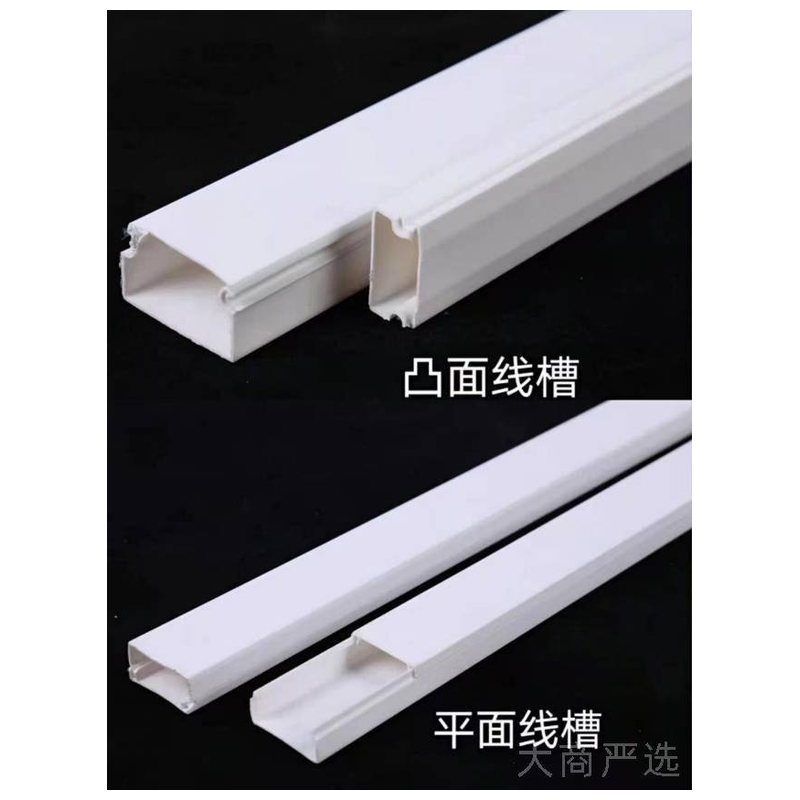

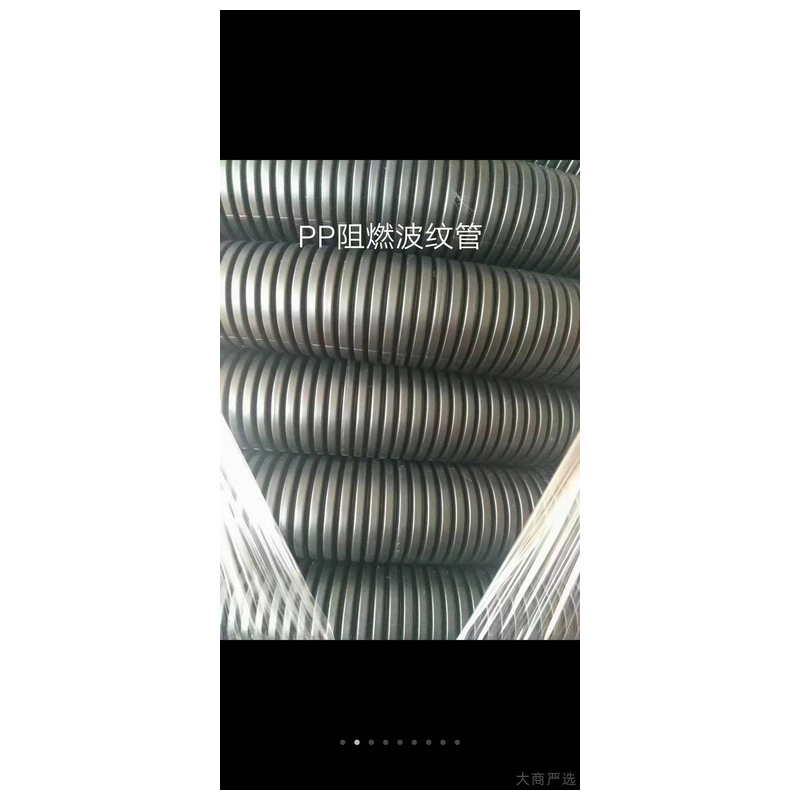

Structure / Process Round solid-wall extruded rigid conduit with deburred ends for easy wire pulling; supplied with couplers, elbows and lock nuts; corrugated conduit bends freely thanks to annular corrugation; trunking is a two-part structure of channel body plus snap-on cover
Product Features Flame-retardant and self-extinguishing once the flame is removed; insulating with 2000V withstand voltage to protect cables; cold-bendable without springback; pressure and impact resistant, hard to crack; uniform wall thickness with smooth inner wall for easy wire pulling; surface trunking keeps wiring tidy and can be sawn and spliced
Type Electrical Conduit / PVC Flame-Retardant Wiring Pipe / PP Corrugated Conduit / PVC Surface Trunking

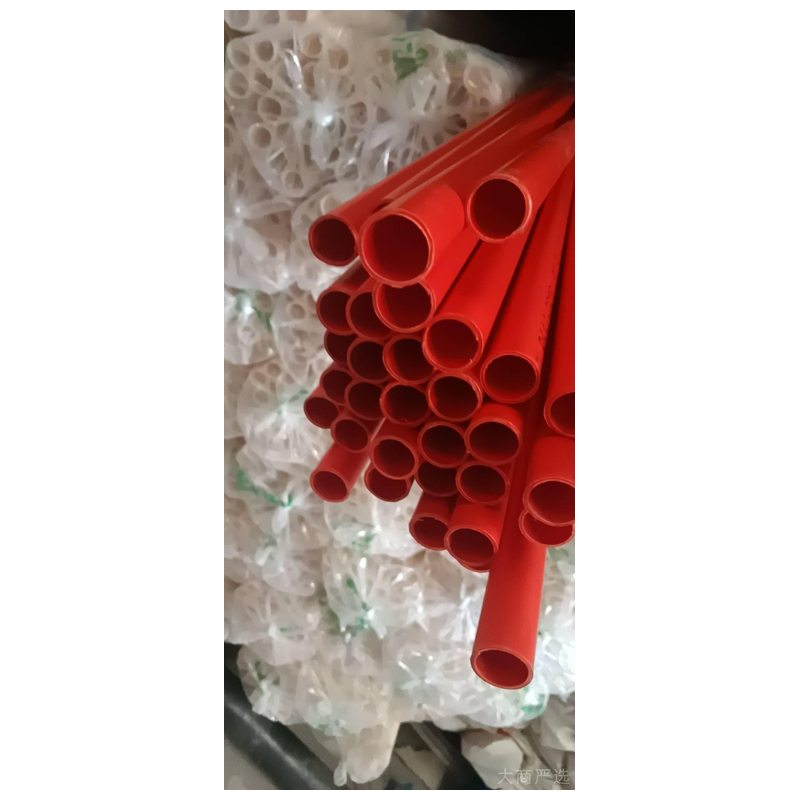

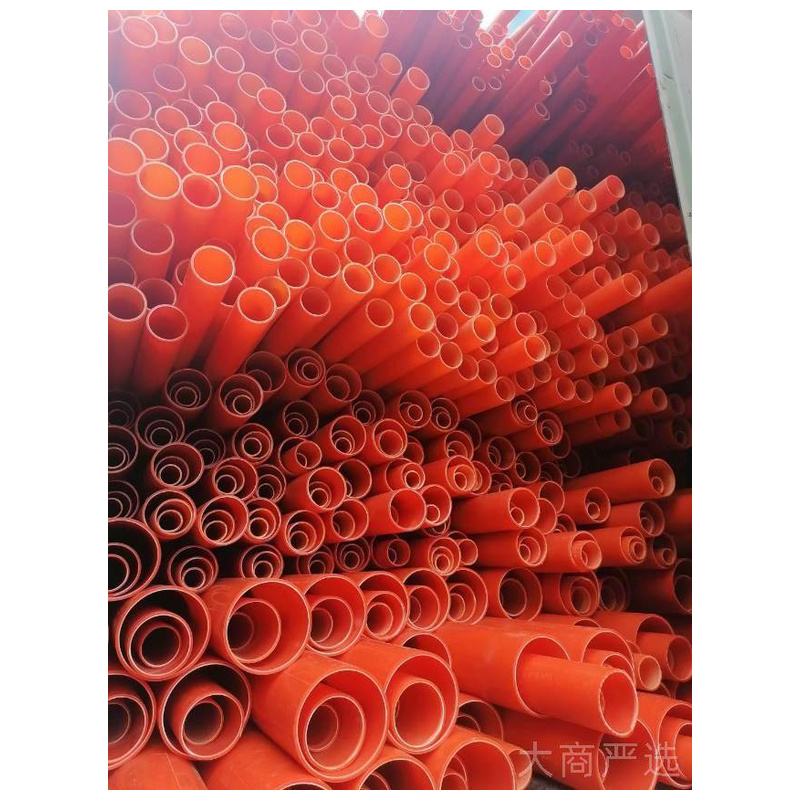

Color Red, orange, white and light grey conduit; white trunking; grey and black corrugated conduit
Function Protecting and routing building electrical cables and low-voltage communication cables; enabling concealed wire pulling and surface wiring while preventing abrasion, damp and rodent damage
Application Scenario Concealed electrical conduit runs in homes and office buildings / factory workshop power distribution wiring / low-voltage and network structured cabling / surface wiring in renovation projects / outdoor cable protection sleeves
Specification Conduit nominal outer diameter 16/20/25/32/40/50mm, wall thickness 1.0-2.0mm, fixed length 3m/4m; corrugated conduit AD16-AD50mm in coils; trunking 20x10 to 100x40mm, length 2m; standard GB/T 20041.31
Brand OEM/ODM (Customizable)
Minimum Order Quantity 100 pieces
Port Qingdao, Rizhao
