Zhongcai Group Xianglong Plastic HDPE Double Wall Corrugated Drainage Pipe SN4 SN8 Ring Stiffness dn200-dn1200 Municipal Buried Sewage Pipe


$11.28

  • SKU: ZC04
  • Availability: 999
Total $11.28
WhatsApp
If the price of the product is reduced within 30 days, we will notify you via email, SMS and mobile client~
Notify you when the item is below the price
Mobile phone number
Email address
If the goods arrive within 30 days, we will notify you via email, SMS and mobile client~
Mobile phone number
Email address
Origin China
Material Virgin high-density polyethylene (HDPE) plus antioxidant and carbon-black UV additives; matching inspection chamber shafts rotomoulded or injection-moulded from the same compound

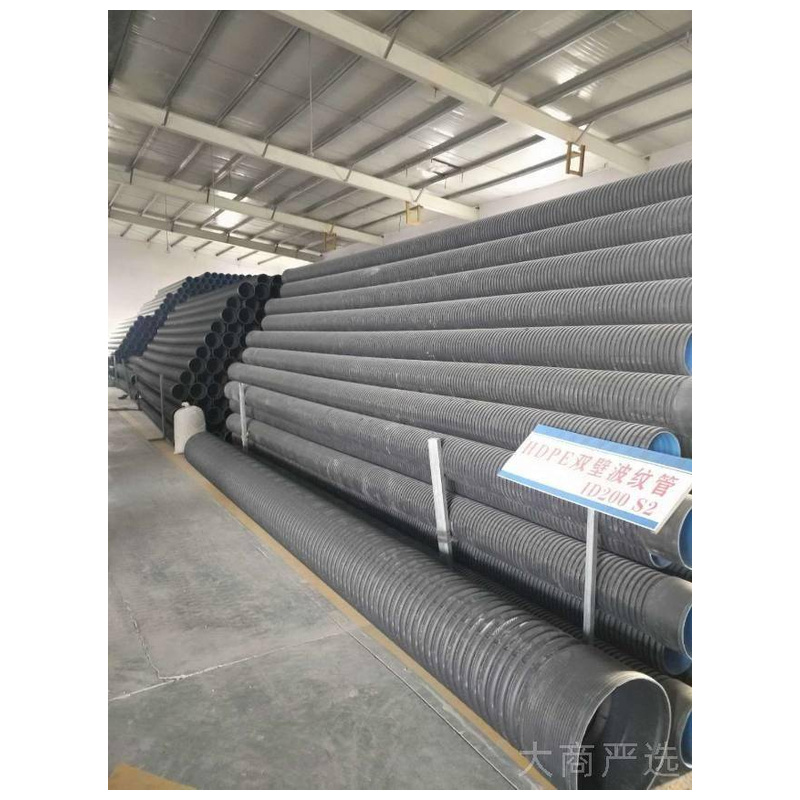

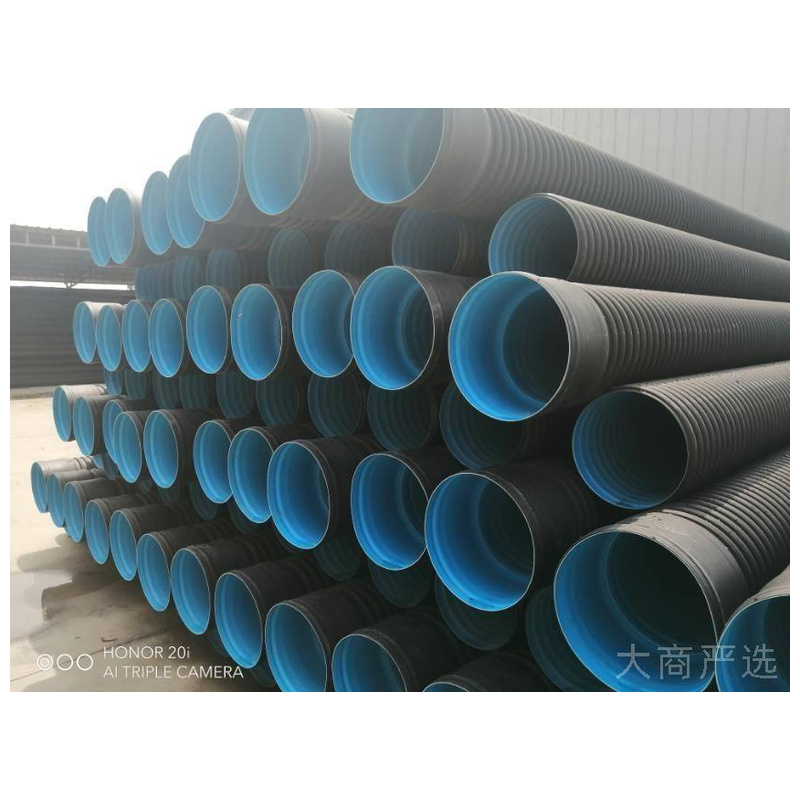

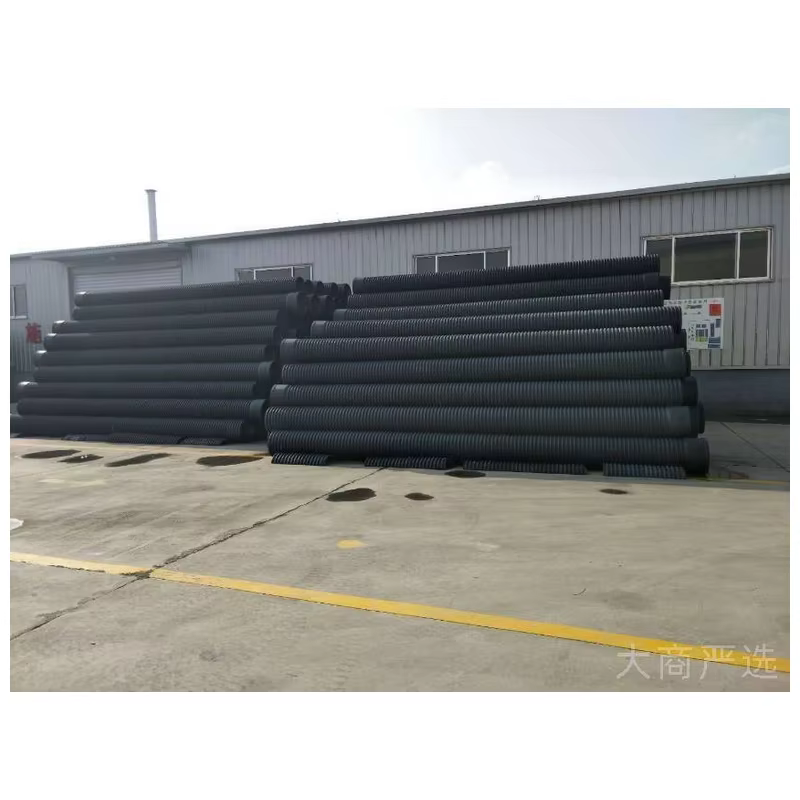

Product Name HDPE Double-Wall Corrugated Drainage Pipe with Matching Plastic Inspection Chamber (rubber-ring socket joint included)

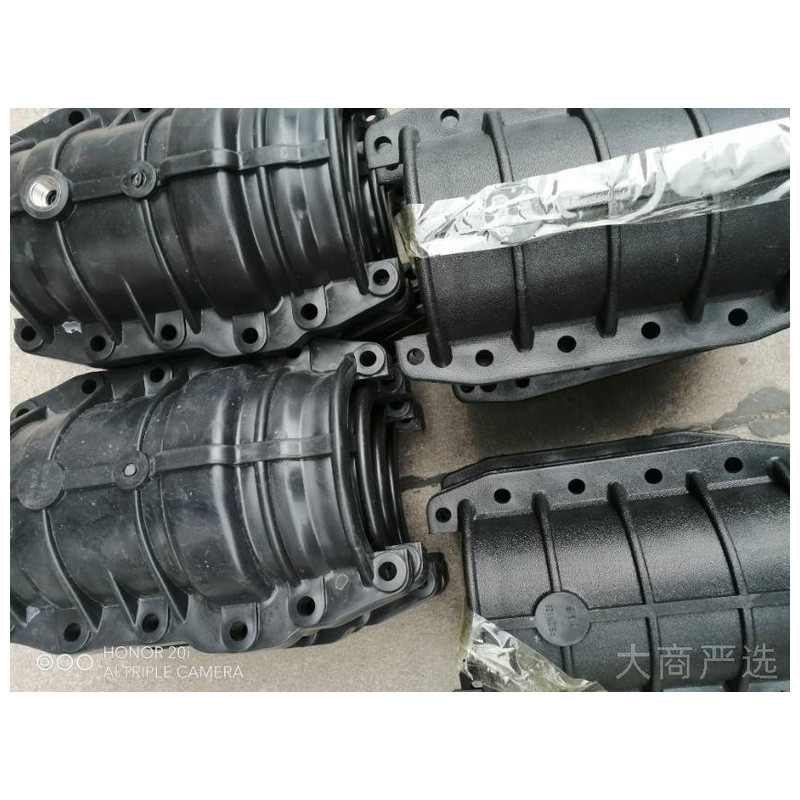

Structure / Process Double-layer co-extruded hollow structure with smooth inner wall and annular corrugated outer wall; flexible socket joint with rubber ring or heat-shrink sleeve connection; matched with integrated plastic inspection chamber shafts and bases
Product Features High ring stiffness resists soil external pressure without deformation; only about one-eighth the weight of concrete pipe for fast hoisting and installation; smooth inner wall raises conveying capacity by roughly 20%; flexible joints absorb ground settlement without leakage; corrosion resistant with a service life over 50 years
Type Plastic Pipe / HDPE Double-Wall Corrugated Pipe / Buried Non-pressure Drainage Pipe
Color Black outer wall with black or blue inner wall (inspection chamber in black)
Function Buried gravity-flow discharge of municipal sewage, rainwater, industrial wastewater and farmland drainage; matching inspection chambers allow network maintenance and desilting
Application Scenario Municipal storm and sewage networks / road and highway drainage / residential compound and industrial park drainage / farmland drainage and water conservancy works / landfill leachate collection
Specification Nominal inner diameter dn200-dn1200mm; ring stiffness SN4/SN6/SN8; fixed length 6m; matching inspection chamber shaft inner diameter 700/1000mm; standard GB/T 19472.1
Brand OEM/ODM (Customizable)
Minimum Order Quantity 100 meters
Port Qingdao, Rizhao
