Zhongcai Group Xianglong Plastic PE Water Supply Coil PE100 Black Blue Strip HDPE Water Pipe DN20-DN630 Hot Melt Butt


$15.75

  • SKU: ZC03
  • Availability: 999
Total $15.75
WhatsApp
If the price of the product is reduced within 30 days, we will notify you via email, SMS and mobile client~
Notify you when the item is below the price
Mobile phone number
Email address
If the goods arrive within 30 days, we will notify you via email, SMS and mobile client~
Mobile phone number
Email address
Origin China
Material PE100 grade virgin high-density polyethylene (HDPE) plus carbon-black UV masterbatch; the steel-mesh skeleton version embeds a high-strength steel wire mesh composite layer
Product Name PE Water Supply Coil Pipe / Steel Wire Mesh Skeleton Polyethylene Composite Pipe (coil or straight fixed length)

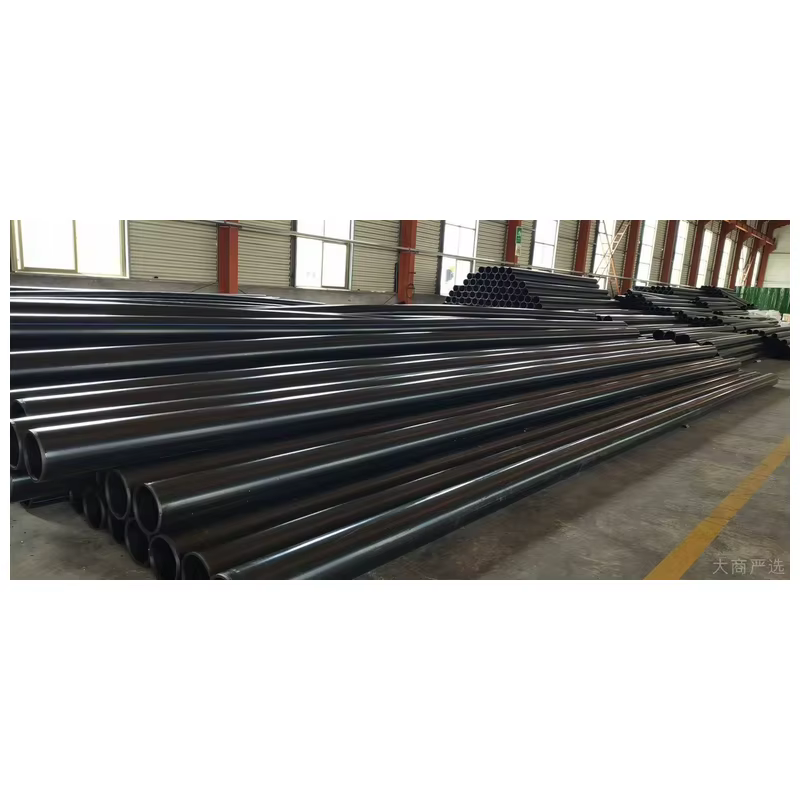

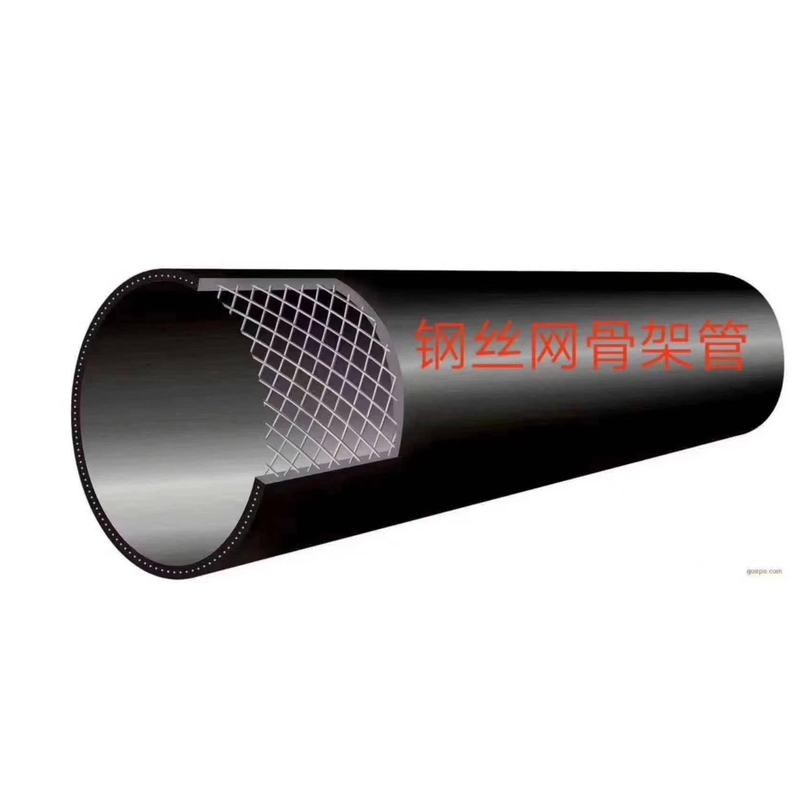

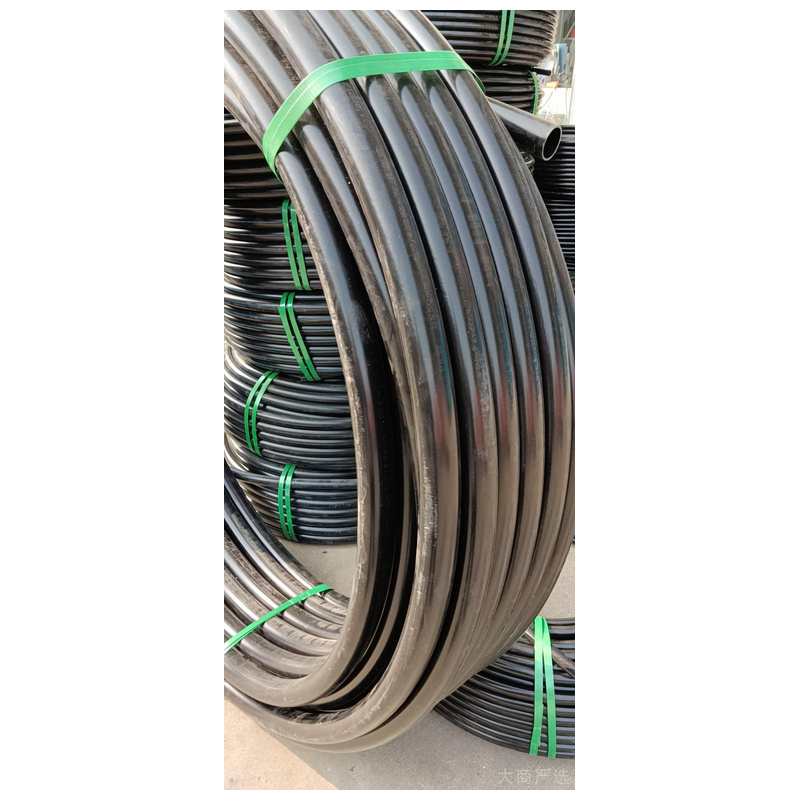

Structure / Process Single-layer solid-wall co-extrusion (black body with blue co-extruded stripe); small diameters delivered in coils, large diameters as 6m/12m straight lengths; jointed by butt fusion welding, electrofusion fittings or flanges; the composite version is a three-layer structure with steel wire mesh between inner and outer PE layers
Product Features Excellent flexibility, coilable for long-distance laying with fewer joints; resistant to environmental stress cracking with 50-year service life; homogeneous fusion joints achieve zero leakage; UV-ageing resistant and installable at -40°C; the composite version offers higher pressure rating and greater rigidity
Type Plastic Pipe / PE100 Water Supply Pipe / Steel Wire Mesh Skeleton Composite Pipe

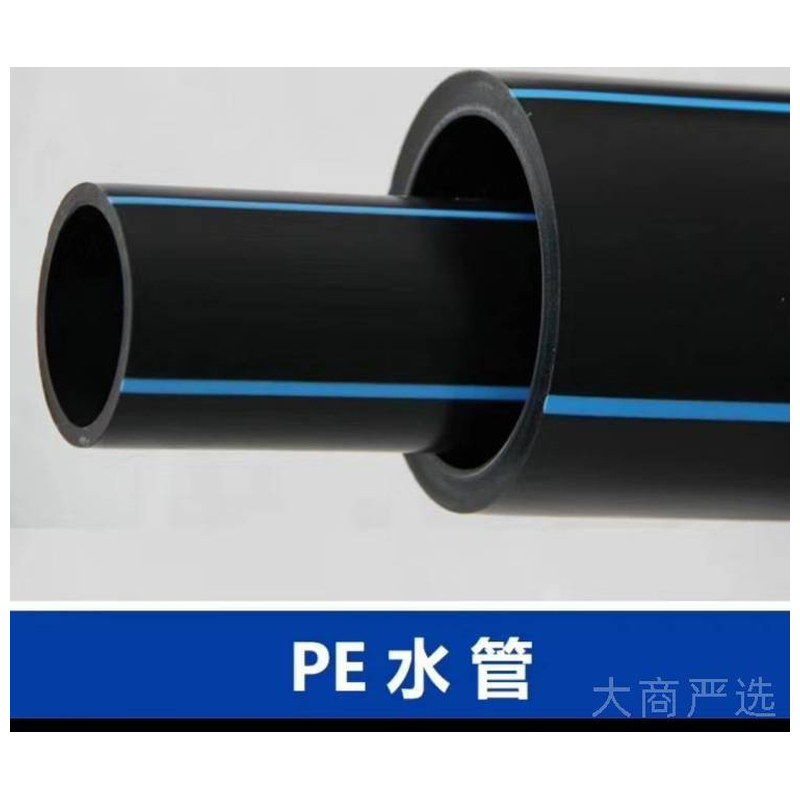

Color Black body with blue stripe (all-blue or yellow-stripe gas marking customizable)
Function Conveying drinking water, raw water, irrigation water and industrial media; buried or exposed long-distance water transmission
Application Scenario Municipal water supply mains / rural safe drinking water projects / high-efficiency agricultural water-saving irrigation / landscape and mining water transmission / industrial circulating water pipelines
Specification Nominal outer diameter dn20-dn630mm; SDR11/SDR13.6/SDR17/SDR21; nominal pressure 0.6/0.8/1.0/1.25/1.6MPa; coil length 100m/200m or straight length 6m/12m; standard GB/T 13663.2
Brand OEM/ODM (Customizable)
Minimum Order Quantity 100 meters
Port Qingdao, Rizhao
